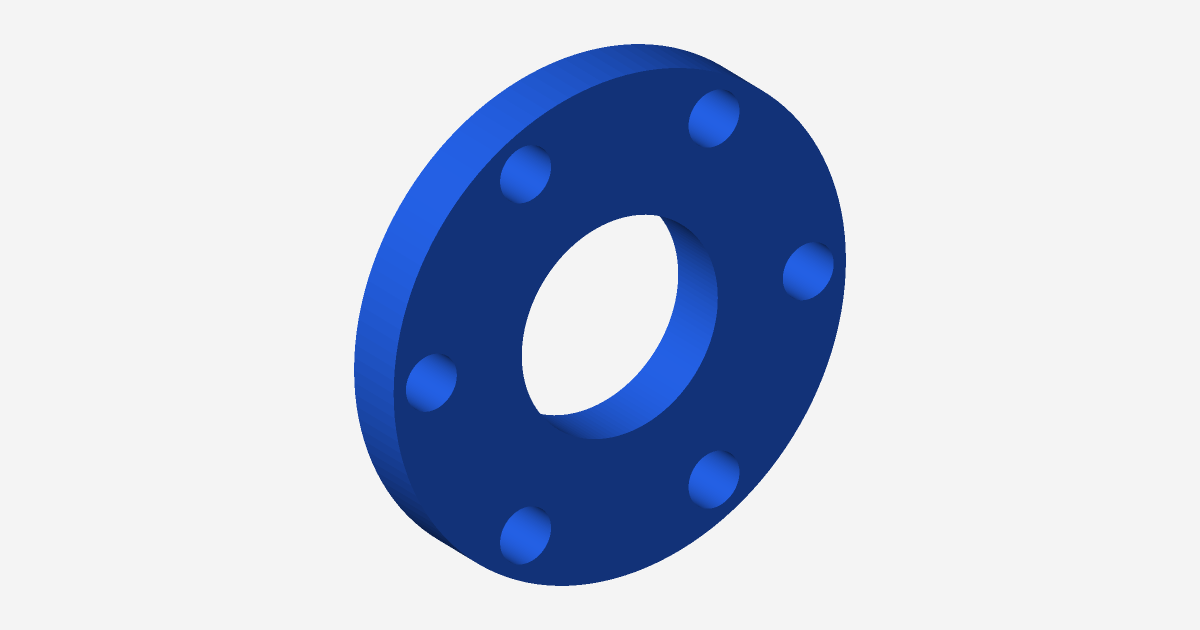

Flange DN50 PN16
A circular flange 120mm diameter, 15mm thick, 52mm centre bore, 6 M12 bolt holes on 100mm pitch circle
| Measured size | 120 × 120 × 15 mm |
|---|---|
| Material | steel |
| Price | £3.49 |
| Formats | STEP · STL · DXF |
The size above is measured from the geometry that was built, not copied from the description. Where the two differ, the measured figure is the one you will receive.
Buy & download — £3.49 →Or describe your own part and get it in seconds — try it free.
